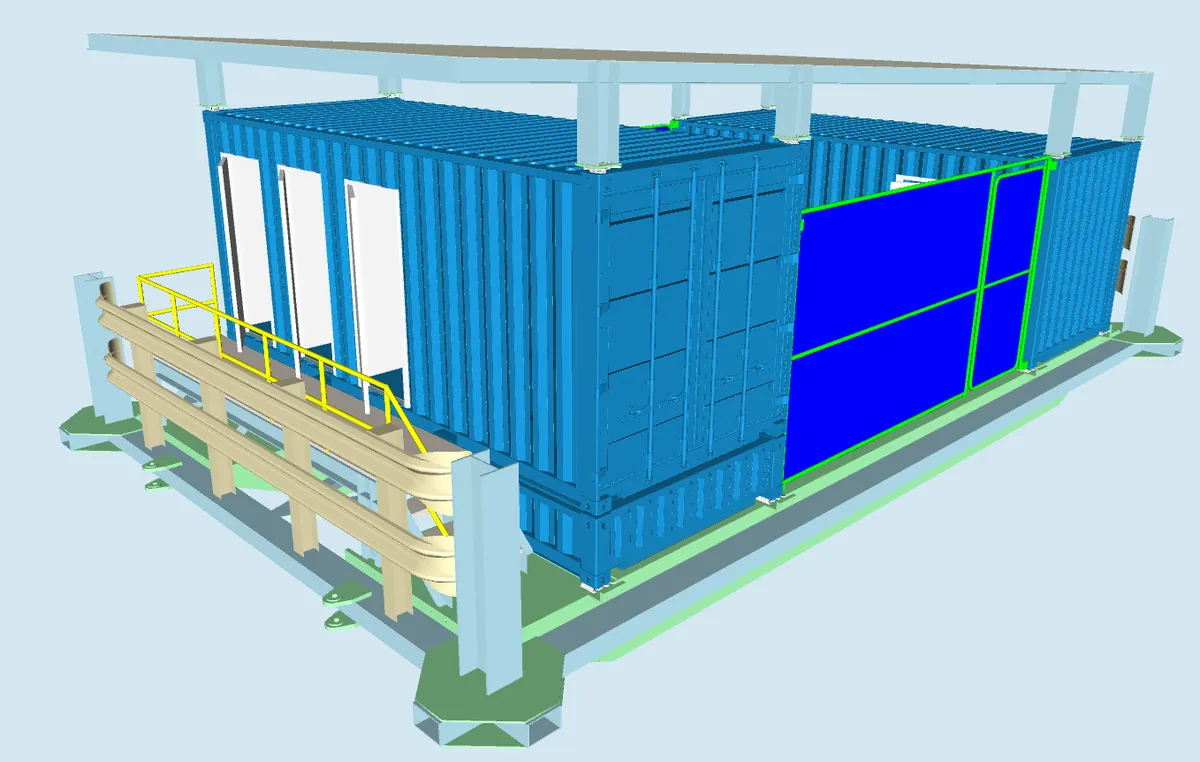

A mobile maintenance skid supporting the Dry Mining Unit in Senegal — two 6 m containers dragged across the sand by bulldozer — secured with Twistlock Africa connection hardware supplied via the SMPP contractor.
Developer
Partner
Partner
Partner
The mobile skid supports the Dry Mining Unit (DMU) by providing a secure working area to maintain equipment and store consumables and spares. The skid is dragged across the sand by bulldozers.
It consists of two 6 m containers — one for ablutions and tool room, the second for storage of spares. Together with the ablution container, a quarter-height container houses the raw-water and waste-water conservancy tanks.
Twistlock Africa supplied the connection hardware via the SMPP contractor. Developer: Hatch. Partners: ADP Group, Telenetix, Challenge 2000.
Manual double-ended twistlock — the industry-standard connector that locks ISO container corner castings together for safe vertical stacking, with a hand-thrown lever and clear locked/unlocked indication.
Weldable dovetail twistlock for securing containers to structures or structures to containers; available in 45° and 55° configurations, left-hand (standard) and right-hand options.
ABD-D1 bolted-on dovetail twistlock — a single-casting chassis on a 16 mm base plate that bolts to a concrete foundation or steel structure, securing a container with no permanent modification to the container itself.
Dovetail twistlock welded to a 200 x 200 x 16 mm base plate — the standard fabricated boltable, and the starting point for any bolt pattern, footprint or mounting arrangement a site requires.
