Manual double-ended twistlock — the industry-standard connector that locks ISO container corner castings together for safe vertical stacking, with a hand-thrown lever and clear locked/unlocked indication.
No prices online — quotations are prepared per application and quantity, usually within one business day; a more involved enquiry may take a little longer.
| Material | Heat-treatable steel, forged |
|---|---|
| Load Rating (SWL) | SWL 250 / 210 / 1000 kN (tension / shear / compression) — MBL 500 / 420 / 2000 kN. Ratings apply to both patterns (TL-2 and BD-A2). |
| Unit mass | 4.23 kg |
| Finish / Coating | Hot-dip galvanised (silver) — no colour options |
| Overall height | approx. 160 mm (TL-2 pattern) · approx. 166 mm (BD-A2 pattern) |
| Variants | TL-2 pattern (TLA-STK-DMTL-01) · BD-A2 pattern (TLA-STK-DMTL-02); left-hand and right-hand locking (both patterns) |
| Standard | ISO 1161 (corner casting interface) |
| Class approval | Type certified — certificate available on request |
Ratings as published on the current datasheet (download above).
Vertical container stacking on ships and ashore; container buildings, billboards and multi-storey structures.

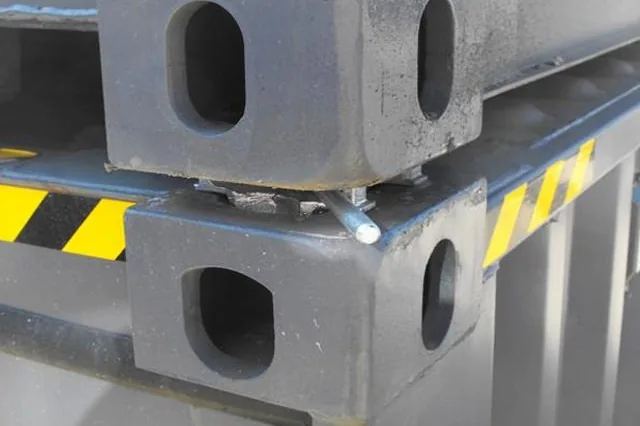

The double-ended manual twistlock is the industry-standard device for locking ISO containers together in vertical stacks. One unit engages the top corner casting of the lower container and the bottom corner casting of the upper container, and is locked or released by hand with a single lever that also shows the locked and unlocked positions. Twistlock Africa supplies two proven patterns, the TL-2 and the GLS BD-A2. Both fit ISO 1161 corner castings and do the same job in service.
Add the exact option you need — each goes on the quotation as its own line.
| Option | SKU | Mass | |
|---|---|---|---|
| TL-2 pattern | TLA-STK-DMTL-01 | 4.23 kg | |
| BD-A2 pattern | TLA-STK-DMTL-02 | 4.23 kg |
