Horizontal twistlock — couples two containers end to end or side by side through the side apertures of their ISO 1161 corner castings; two units turn two 20 ft containers into a single 40 ft unit. Rated SWL 100 kN in tension, with flanged end-plate and D-ring variants.
No prices online — quotations are prepared per application and quantity, usually within one business day; a more involved enquiry may take a little longer.
| Material | Forged twistlock, cast steel body |
|---|---|
| Load Rating (SWL) | SWL 100 kN — MBL 200 kN. Rated in tension only. Ratings apply to all three variants. |
| Unit mass | 4.8 kg |
| Dimensions | Body 88 × 77 mm; neck 50 × 22 mm; collar 22 mm; end view Ø76 mm |
| Variants | With flanged end plate (TLA-ATT-HTLEP-01, approx. 6 kg) · with D-ring (TLA-ATT-HTLSH-01, approx. 5.5 kg) |
| Finish / Coating | Hot-dip galvanised |
| Standard | ISO 1161 (corner casting side aperture) |
| Class approval | Type certified — certificate available on request |
| Safety | Horizontal twistlocks and their variants are not lifting points. |
Ratings as published on the current datasheet (download above).
Coupling two 20 ft containers end to end into a single 40 ft unit; side-by-side coupling for site offices, container buildings and container stacks; fixing walkways, roofs, masts and staircases to the corner casting (flanged variant); anchoring lashing, guy lines and rigging at the corner casting (D-ring variant).

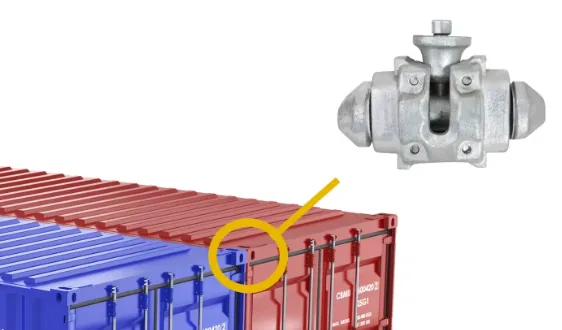

The horizontal twistlock couples two containers through the side apertures of adjacent ISO 1161 corner castings. Each cone head enters a side aperture and turning the lever locks both heads, so the two containers are held together as one unit. Two units couple two containers end to end, for example two 20 ft containers into a single 40 ft unit; four are recommended for a rigid side-by-side configuration. The horizontal twistlock is rated in tension. It is also available with a flanged end plate, for fixing structures to the corner casting, and with a D-ring, for connecting lashing and rigging.
