Replacement ISO corner castings for shipping container repair; manufactured from low-temperature steel (-40°C rated); sold individually by corner position (TL, TR, BL, BR) or as a set of 8.
No prices online — quotations are prepared per application and quantity, usually within one business day; a more involved enquiry may take a little longer.
| Material | SCW480 / low-temperature steel (-40°C working temperature). Also available in aluminium and stainless steel |
|---|---|
| Standard | ISO 1161 |
Load ratings are as published in the TLA 2026 catalogue. Site-specific ratings and certification: on request.
Container fabrication and repair; replacement of damaged or corroded corner castings.

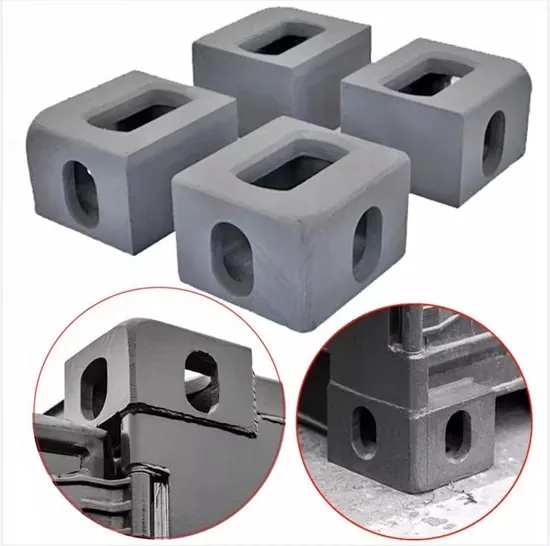

The corner casting is the fitting every other piece of container handling and securing equipment engages — twistlocks, lifting lugs, lashing points and stacking all connect through it. Twistlock Africa supplies replacement sets in low-temperature-rated steel (-40°C) to the standard ISO 1161 geometry, individually by corner position or as a set of eight covering all four positions. Top and bottom castings share the same size and opening, keeping stock simple.
⬇ Download the datasheet (PDF)
◫ 3D model (STEP) — Available on request (WhatsApp)
◇ Technical drawing — included in the datasheet above.
Each variant has its own page, drawing and SKU.
| Variant | SKU | Size / section | Mass | |
|---|---|---|---|---|
| Top Right (TR) | TLA-FAB-CC-TR | 178 × 162 × 118 mm | — | |
| Top Left (TL) | TLA-FAB-CC-TL | 178 × 162 × 118 mm | — | |
| Bottom Left (BL) | TLA-FAB-CC-BL | 178 × 162 × 118 mm | — | |
| Bottom Right (BR) | TLA-FAB-CC-BR | 178 × 162 × 118 mm | — | |
| Set of 8 | TLA-FAB-CC-SET8 | 178 × 162 × 118 mm | — | |
| Stainless steel · Top Right (TR) | TLA-FAB-CC-TR-SS | 178 × 162 × 118 mm | ≈ 11 kg | |
| Stainless steel · Top Left (TL) | TLA-FAB-CC-TL-SS | 178 × 162 × 118 mm | ≈ 11 kg | |
| Stainless steel · Bottom Left (BL) | TLA-FAB-CC-BL-SS | 178 × 162 × 118 mm | ≈ 11 kg | |
| Stainless steel · Bottom Right (BR) | TLA-FAB-CC-BR-SS | 178 × 162 × 118 mm | ≈ 11 kg | |
| Stainless steel · Set of 8 | TLA-FAB-CC-SET8-SS | 178 × 162 × 118 mm | ≈ 88 kg | |
| Aluminium · Top Right (TR) | TLA-FAB-CC-TR-AL | 178 × 162 × 118 mm | ≈ 3.6 kg | |
| Aluminium · Top Left (TL) | TLA-FAB-CC-TL-AL | 178 × 162 × 118 mm | ≈ 3.6 kg | |
| Aluminium · Bottom Left (BL) | TLA-FAB-CC-BL-AL | 178 × 162 × 118 mm | ≈ 3.6 kg | |
| Aluminium · Bottom Right (BR) | TLA-FAB-CC-BR-AL | 178 × 162 × 118 mm | ≈ 3.6 kg | |
| Aluminium · Set of 8 | TLA-FAB-CC-SET8-AL | 178 × 162 × 118 mm | ≈ 28.8 kg |
— = not listed; confirmed with the quotation.
| Load case | Carbon steel (SCW480) & stainless steel | Aluminium EN AW-7020-T6 | Aluminium A356-T6 |
|---|---|---|---|
| Stacking — top fitting (load offset 25.4 × 38 mm) | 942 kN | 687 kN | 459 kN |
| Stacking — bottom fitting on flat support | 1 200 kN | 875 kN | 585 kN |
| Stacking — bottom fitting (load offset) | 942 kN | 687 kN | 459 kN |
| Lifting — top fitting (twistlock hook or shackle) | 195 kN | 142 kN | 95 kN |
| Lifting — bottom fitting (sling at 30°) | 390 kN | 284 kN | 190 kN |
| Longitudinal restraint — two bottom fittings | 300 kN | 219 kN | 146 kN |
| Vertical restraint — top and bottom fittings | 250 kN | 182 kN | 122 kN |
| Misgather — any fitting | 190 kN | 139 kN | 93 kN |
Carbon steel and stainless steel: the design loads of ISO 1161:2016. Aluminium: those loads derated in proportion to minimum tensile strength against SCW480 (480 MPa) — EN AW-7020-T6 350 MPa (×0.73), A356-T6 234 MPa (×0.49). Aluminium corner castings are made to ISO 1161 dimensions but are not rated to its design loads. Design loads are the loads a fitting is designed and tested to, not a safe working load for lifting gear — ask an engineer for a site-specific rating.
