Bridge clamp — locks the top corner castings of two side-by-side containers together horizontally, turning a row of containers into a single braced wall when used with twistlocks.
No prices online — quotations are prepared per application and quantity, usually within one business day; a more involved enquiry may take a little longer.
| Material | Forged steel |
|---|---|
| Load Rating (SWL) | SWL 50 kN — MBL 100 kN. Rated in tension only. Ratings apply to both lengths. |
| Lengths | 280 mm (TLA-STK-BRC-280) · 380 mm (TLA-STK-BRC-380) |
| Gap between containers | 25–100 mm (280) · 25–225 mm (380) |
| Threaded rod | Ø36 mm |
| Unit mass | 280: 3.3 kg · 380: 3.6 kg |
| Finish / Coating | Hot-dip galvanised |
| Standard | ISO 1161 (corner casting top and side apertures) |
| Supplied | Complete with lock nut |
Ratings as published on the current datasheet (download above).
Horizontal locking of side-by-side container stacks and rows; container buildings and multi-container structures; temporary fixing during construction or fabrication.

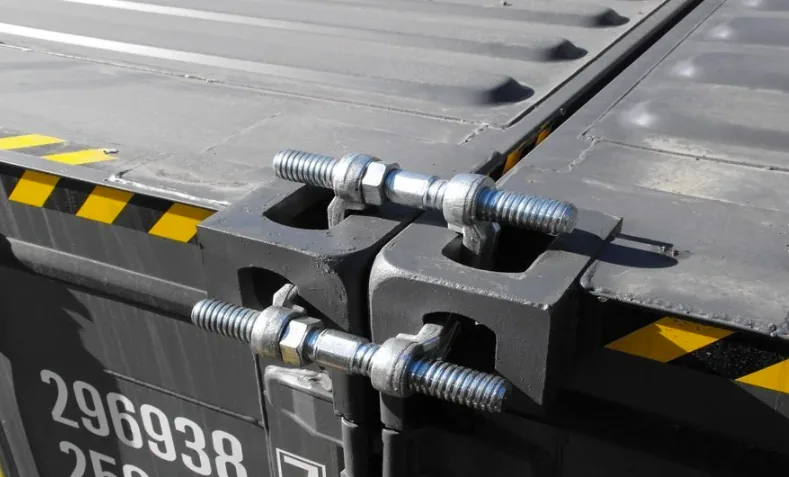

The bridge clamp locks the top corner castings of two side-by-side containers together horizontally. Its two hooks engage the top apertures, or the side apertures, of two adjacent top corner castings and are drawn together on a threaded rod turned at the central hex, then held by a lock nut. Used with twistlocks, it turns a row of containers into one braced block, locked both vertically and horizontally. Twistlock Africa supplies two lengths: 280 mm and 380 mm, for different gaps between containers. Correct use: horizontal only — both hooks in the top apertures, or both in the side apertures. Never vertical.
Add the exact option you need — each goes on the quotation as its own line.
| Option | SKU | Mass | |
|---|---|---|---|
| 280 mm | TLA-STK-BRC-280 | 3.3 kg | |
| 380 mm | TLA-STK-BRC-380 | 3.6 kg |
