Flush weldable deck sockets (single, double and quad) for tweendeck applications; DNV-GL approved; SWL 250 kN tension / 210 kN shear (MBL 500 kN / 420 kN).
No prices online — quotations are prepared per application and quantity, usually within one business day; a more involved enquiry may take a little longer.
| Material | High tensile steel; weldable inorganic zinc or shop primer |
|---|---|
| Load Rating (SWL) | SWL 250 kN tension / 210 kN shear — MBL 500 kN / 420 kN |
| Dimensions | Top plate Ø205 mm (single), thickness 16 or 28 mm; standard pitches 203/365/258 mm |
| Standard | DNV-GL classification society approval |
Load ratings are as published in the TLA 2026 catalogue. Site-specific ratings and certification: on request.
Tweendeck container securing; naval and commercial shipping applications.

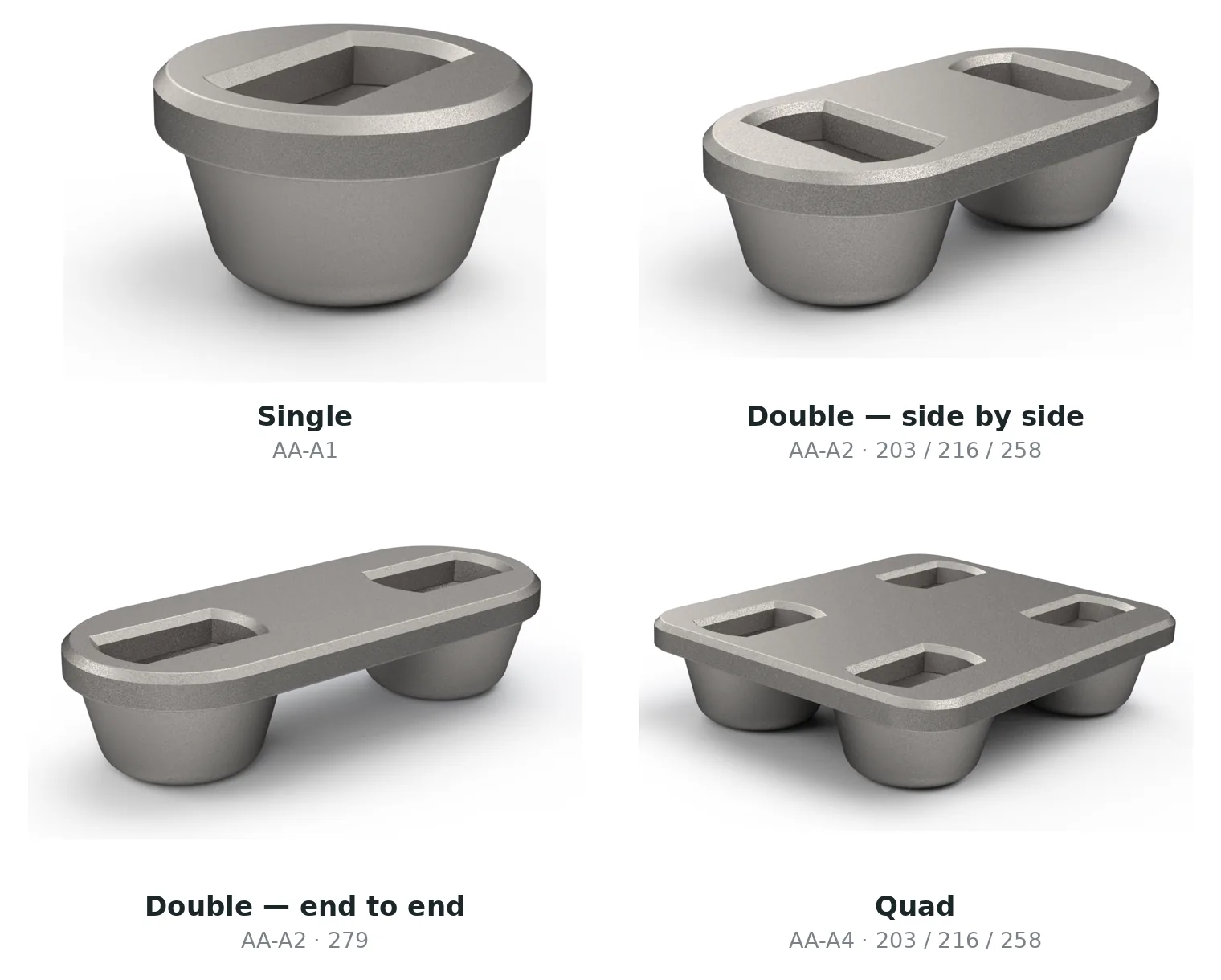

Where a raised socket cannot be used — most commonly a ship's tweendeck — the flush deck socket welds in level with the surrounding plate instead of standing proud. Supplied in four configurations — single, double side-by-side, double end-to-end and quad, each carrying its own SKU — with a top-plate thickness of 16 mm or 28 mm matched to the tank-top thickness, standard pitches of 203/365/258 mm (others on request), and DNV-GL class approval. Every unit is tightness tested before dispatch.
⬇ Datasheet TLA-ANC-DSKF-DL (PDF · draft A)
⬇ Datasheet TLA-ANC-DSKF-DT (PDF · draft A)
⬇ Datasheet TLA-ANC-DSKF-Q (PDF · draft A)
⬇ Datasheet TLA-ANC-DSKF-S (PDF · draft A)
◫ Request the 3D model (STEP) — WhatsApp engineering
◇ Technical drawing — included in the datasheet above.
