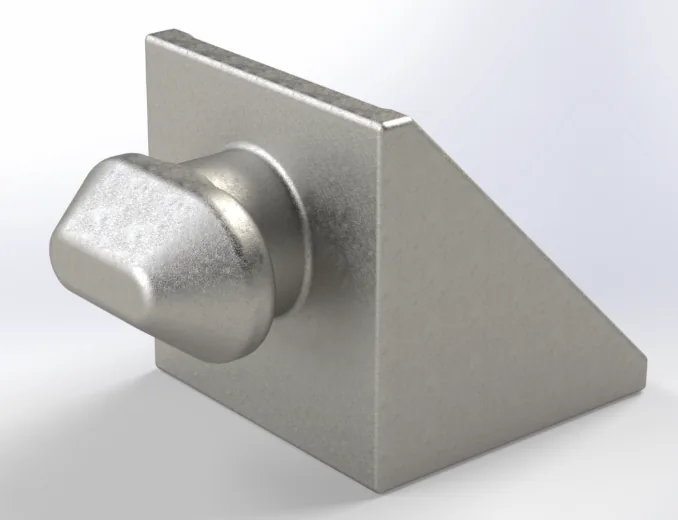

Twistlock Africa-developed anchor twistlock for securing containers to concrete after placement, preventing uplift in high winds and deterring theft through upliftment; designed for Hilti chemical anchors.
No prices online — quotations are prepared per application and quantity, usually within one business day; a more involved enquiry may take a little longer.
| Material | ZG270-500 cast steel |
|---|---|
| Load Rating (SWL) | SWL 40 kN tension / 20 kN shear — MBL 200 kN |
| Finish / Coating | Hot Dip Galvanised |
Load ratings are as published in the TLA 2026 catalogue. Site-specific ratings and certification: on request.
Permanent container anchoring on concrete foundations; anti-uplift (wind resistance); anti-theft at remote sites; recommended minimum 2 opposite corners, 4 corners for maximum security.
Developed by Twistlock Africa specifically for anchoring an already-landed container to a concrete slab, this twistlock is primarily a wind-uplift safeguard and secondarily a theft deterrent — the anchoring makes it materially harder to lift the container away. Its design lets the Hilti chemical anchor rod be installed after the twistlock is already seated, with a through-hole allowing adjustment once the anchor is in. Supplied in sets of 2 or 4; kit pricing brings the cost per anchoring point down. Requires a Hilti M20 × 240 mm anchor rod and chemical anchor — see Hilti anchor rods & chemical anchor. Two derivatives are stocked, each with its own SKU: the locally manufactured unit and an imported equivalent.
⬇ Download the datasheet (PDF)
◫ 3D model (STEP) — Available on request (WhatsApp)
◇ Technical drawing — included in the datasheet above.
Add the exact option you need — each goes on the quotation as its own line.
| Option | SKU | Mass | |
|---|---|---|---|
| Derivative -01 | TLA-ANC-ANTL-01 | — | |
| Derivative -02 | TLA-ANC-ANTL-02 | — |
— = confirmed on the quotation.
