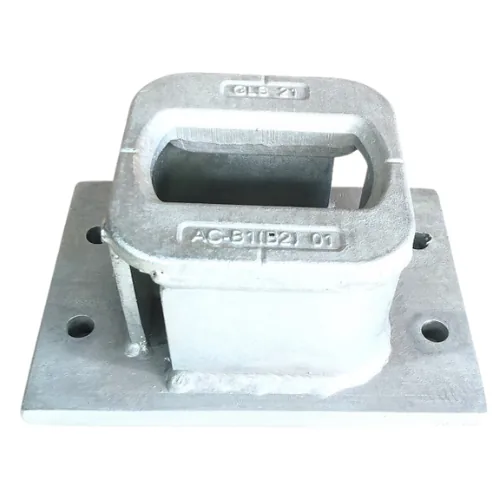

A raised ISO deck socket on a drilled base plate — bolts down to a slab or footing instead of being welded to steel, and lifts the container clear of the ground on the same casting used elsewhere in this section.
No prices online — quotations are prepared per application and quantity, usually within one business day; a more involved enquiry may take a little longer.
| Configurations | Single and double |
|---|---|
| Socket | Raised ISO deck socket, GLS AC-B1 pattern — as the preceding page |
| Base plate | 280 × 200 × 20 mm (single) |
| Fixing | 4 × Ø18 mm holes for anchor bolts or chemical anchors |
| Clearance | 160 mm to the underside of the container, including the stacking twistlock |
| Finish / Coating | Hot dip galvanised |
| Load Rating | SWL 210 kN · breaking load 420 kN |
Load ratings are as published in the TLA 2026 catalogue. Site-specific ratings and certification: on request.
Anchoring containers to concrete slabs, footings and prepared ground; modified containers needing services routed underneath; keeping a container clear of standing water.
Where the raised deck socket on the preceding page is welded to a steel deck, this one arrives on a drilled plate and bolts down — which is what a concrete slab or a footing actually needs. The socket itself is the same casting, so the twistlock range that fits one fits the other, and it comes as a single or a double. The 160 mm of clearance is measured to the underside of the container with the twistlock in place — the room to run a waste line, and the gap that keeps a floor out of standing water.
⬇ Request the datasheet (PDF) — WhatsApp
◫ 3D model (STEP) — Available on request (WhatsApp)
◇ Technical drawing — available on request via the quote basket.
Add the exact option you need — each goes on the quotation as its own line.
| Option | SKU | Mass | |
|---|---|---|---|
| Single | TLA-ANC-BDSK | — | |
| Double | TLA-ANC-BDSK | — |
— = confirmed on the quotation.
