Weldable dovetail slipper (45° and 55°, single and double) providing a permanent socket for matching dovetail twistlocks, allowing containers to be repeatedly mounted and removed without a permanent twistlock.
No prices online — quotations are prepared per application and quantity, usually within one business day; a more involved enquiry may take a little longer.
| Material | Steel (weldable) |
|---|---|
| Load Rating (SWL) | SWL 250 kN (MBL 500 / 420 kN) |
| Dimensions | Per weldable slipper drawing Rev 1 — single 258 mm; double 462 mm |
| Variants | AE-A1 (45°) and AE-B1 (55°) single · AE-A2 (45°) and AE-B2 (55°) double transversal |
| Weight | 3.9 kg (single) / 7.5 kg (double) |
| Finish / Coating | Shop primer as supplied (weldable) |
Load ratings are as published in the TLA 2026 catalogue. Site-specific ratings and certification: on request.
Ship decks; temporary container placements (control rooms, modular buildings); repeated installation/removal applications without a permanent twistlock.

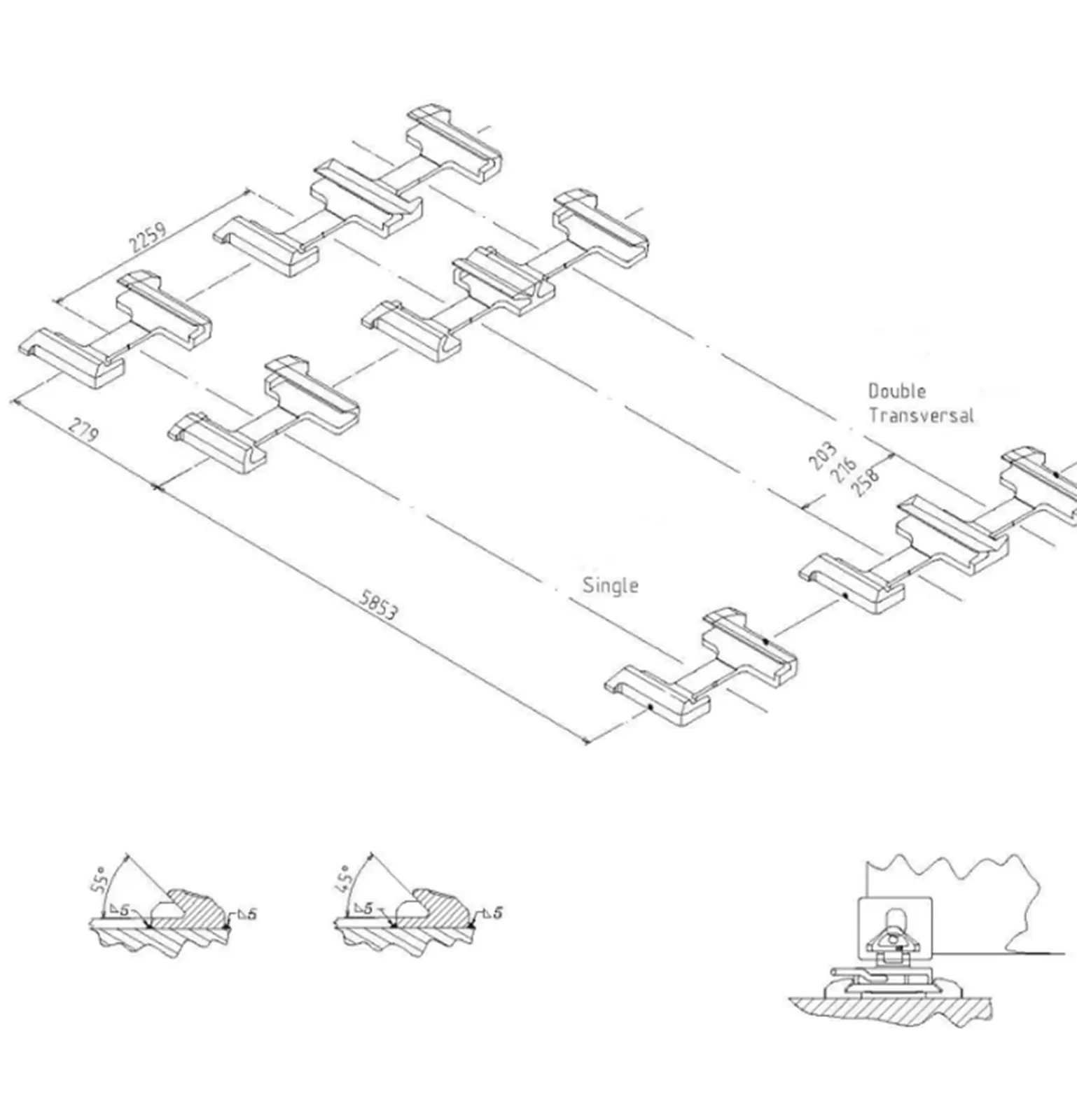

A weldable socket that pairs with the dovetail twistlock, so a container can be set down and lifted off the same point repeatedly without leaving a twistlock permanently in place. The setout drawing alongside gives the pitches for the single and the double transversal arrangement, together with the weld preparation for the 45° and 55° faces.
⬇ Datasheet TLA-ANC-DVSL-01 (PDF)
⬇ Datasheet TLA-ANC-DVSL-02 (PDF)
◫ 3D model (STEP) — Available on request (WhatsApp)
◇ Technical drawing — included in the datasheet above.
Add the exact option you need — each goes on the quotation as its own line.
| Option | SKU | Mass | |
|---|---|---|---|
| Single · AE-A1 · 45° | TLA-ANC-DVSL-01 | 3.9 kg | |
| Single · AE-B1 · 55° | TLA-ANC-DVSL-01 | 3.9 kg | |
| Double transversal · AE-A2 · 45° | TLA-ANC-DVSL-02 | 7.5 kg | |
| Double transversal · AE-B2 · 55° | TLA-ANC-DVSL-02 | 7.5 kg |
