Operation 02 · Anchoring

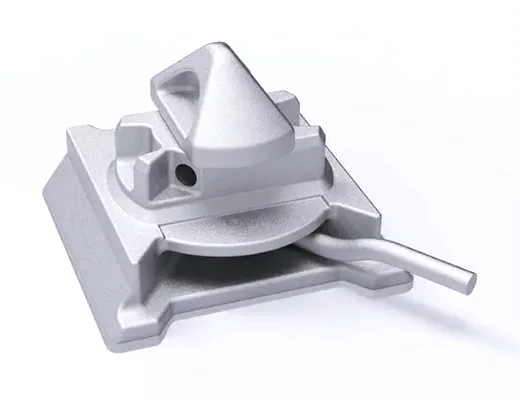

Dovetail twistlock
TLA-ANC-DVTL-01 · 5 options
Video3D on request
Weldable dovetail twistlock for securing containers to structures or structures to containers; available in 45° and 55° configurations, left-hand (standard) and right-hand options.
No prices online — quotations are prepared per application and quantity, usually within one business day; a more involved enquiry may take a little longer.
Specifications
| Material | ZG270-500 cast steel |
|---|---|
| Load Rating (SWL) | SWL 250 kN tension / 210 kN shear / 1000 kN compression — MBL 500 kN / 420 kN / 2000 kN |
| Mass by model | BD-D1 45° 5.4 kg · BD-D2 45° 5.1 kg · BD-E1 55° 6.36 kg — BD-F1 and BD-G1 on request |
| Finish / Coating | Hot Dip Galvanised |
| Standard | ISO 1161 |
Load ratings are as published in the TLA 2026 catalogue. Site-specific ratings and certification: on request.
Features
- Handle position doubles as a clear locked/unlocked visual indicator
- Low-profile design
- Left-hand is standard; right-hand available on request (6–8 week lead time)
- Four variant SKUs: 45° and 55°, each left-hand and right-hand
- Pairs with a matching dovetail slipper for a removable installation
Typical applications
Container-to-deck securing (ships and shore); container-to-structure or structure-to-container connections; combined with a dovetail slipper for removable installations.
Description
Originally developed for securing containers to ship decks when used with a matching dovetail slipper, the dovetail twistlock has become a general-purpose weldable connector wherever a container needs to be fixed to a structure, or a structure fixed to a container. Handle position acts as a visual locked/unlocked indicator, and the low-profile casting keeps clearance to a minimum. Cast from ZG270-500 steel and hot-dip galvanised. Left-hand is the standard configuration; right-hand is available on request with a 6–8 week lead time. The SKU shown is the general category reference — 45° and 55°, left-hand and right-hand, each carry their own SKU.
Downloads & CAD
⬇ Download the datasheet (PDF)
◫ 3D model (STEP) — Available on request (WhatsApp)
◇ Technical drawing — included in the datasheet above.
Dovetail twistlock — 5 options
Add the exact option you need — each goes on the quotation as its own line.
| Option | SKU | Mass | |
|---|---|---|---|
| BD-D1 · 45° | TLA-ANC-DVTL-01 | 5.4 kg | |
| BD-D2 · 45° | TLA-ANC-DVTL-01 | 5.1 kg | |
| BD-E1 · 55° | TLA-ANC-DVTL-01 | 6.36 kg | |
| BD-F1 · on request | TLA-ANC-DVTL-01 | — | |
| BD-G1 · on request | TLA-ANC-DVTL-01 | — |
— = confirmed on the quotation.
