TLA-LFT-CJTR-01
Corner jack with trestle
Corner jack with integrated locking trestle rod; raises container corners ~200 mm and locks at height so the hydraulic jack can be removed; trestle rod SWL 4 tons per jack.
For hire
Operation 06 · Lifting
Corner jack

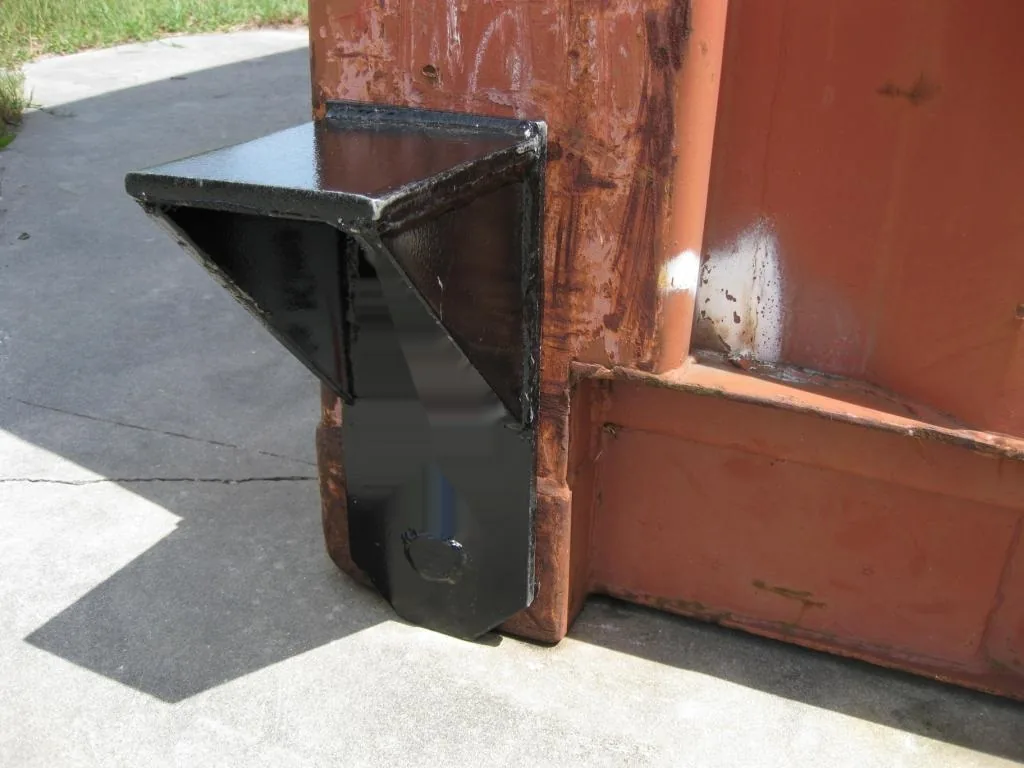

TLA-LFT-CJACK-01
For hire
Container corner jack for levelling or full-container lifting; used with a 10-ton hydraulic jack, lifting each corner up to a maximum of 250 mm. A minimum of two is recommended, used as a pair to lift two adjacent corners.
No prices online — quotations are prepared per application and quantity, usually within one business day; a more involved enquiry may take a little longer.
Specifications
| Material | Graded steel plate — welded assembly |
|---|---|
| Lift height | Up to a maximum of 250 mm |
| Load Rating (SWL) | 10 tons (standard) / 20 tons (heavy duty) |
| Finish / Coating | Etching primer + final coat; client colour choice |
Load ratings are as published in the TLA 2026 catalogue. Site-specific ratings and certification: on request.
Features
- Minimum of 2 required (recommended) — used as a pair to lift two adjacent corners
- Set of 4 for a full container lift
- Lifts the corner casting up to a maximum of 250 mm
- Welded assembly
- Bracket removes and stores once the container is levelled
Typical applications
Container levelling at permanent or temporary sites; full container lifting in combination with hydraulic jack; maintenance access.
Description
Designed to lift and level container corners. A minimum of two is recommended, used as a pair to lift two adjacent corners at once — this avoids twisting the container — and a set of four is needed for a full container lift. Used with a 10-ton hydraulic jack, the corner casting can be raised up to a maximum of 250 mm; where the gap is packed with weight-bearing material the procedure can be repeated. The jack is a welded assembly, and the bracket can be removed and stored once the container is levelled.
Downloads & CAD
⬇ Download the datasheet (PDF · draft A)
◇ Technical drawing — included in the datasheet above.
⛭ Available for hire — rates on application.
