Heavy-duty rubber-tyred container castor with a dovetail twistlock mechanism — a 22-inch wheel on a swivel castor that lets a loaded container be moved without a crane or forklift; rated 2.25 t per wheel, supplied as a set of four.
No prices online — quotations are prepared per application and quantity, usually within one business day; a more involved enquiry may take a little longer.
| Type | Rubber container castor wheel, swivel — ACE DCW-R-5T |
|---|---|
| Wheel Ø × width | 541 mm (22") × 160 mm |
| Assembly | 681 mm high · 528 mm across the pair |
| Capacity (each) | 2.25 t (2 250 kg) per wheel |
| Weight | 130 kg each — supplied 4 per plywood box |
| Capacity (set of 4) | 9 000 kg payload at up to 10 km/h · 5 000 kg at up to 20 km/h |
| Fixing | Dovetail twistlock mechanism — no drilling or welding |
Load ratings are as published in the TLA 2026 catalogue. Site-specific ratings and certification: on request.
Moving loaded containers around yards, depots and construction sites at controlled speeds; relocating containers where a crane or forklift is not available.

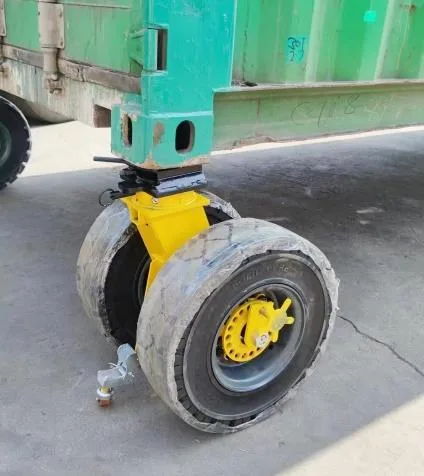

The rubber castor is the rough-ground end of the castor range: a 22-inch rubber-tyred wheel on a swivel castor with a dovetail twistlock mechanism, so it installs into the corner casting without drilling or welding. Each wheel is rated 2.25 t and it is specified as a set of four — 9 000 kg at up to 10 km/h, or 5 000 kg up to 20 km/h. The tyre absorbs the shock loads that break solid-wheel castors on rougher ground.
⬇ Request the datasheet (PDF) — WhatsApp
◇ Technical drawing — available on request via the quote basket.
⛭ Available for hire — rates on application.
Heavy-duty 1.8 t bottom-entry castor wheel — locks into the bottom corner casting via a dovetail twistlock interface so a container can be towed and manoeuvred on hard, flat surfaces such as concrete, paving and asphalt. Supplied with (-TL) or without (-PL) the twistlock, each combination carrying its own SKU. Swivel or fixed.
Heavy-duty 3.5 t bottom-entry castor wheel — locks into the bottom corner casting via a dovetail twistlock interface so a container can be towed and manoeuvred on hard, flat surfaces such as concrete, paving and asphalt. Supplied with (-TL) or without (-PL) the twistlock, each combination carrying its own SKU. Swivel or fixed.
Heavy-duty 5.0 t bottom-entry castor wheel — locks into the bottom corner casting via a dovetail twistlock interface so a container can be towed and manoeuvred on hard, flat surfaces such as concrete, paving and asphalt. Supplied with (-TL) or without (-PL) the twistlock, each combination carrying its own SKU. Swivel or fixed.
A special bracket that connects castor wheels to the side of a shipping container — for moving containers where headroom is limited. Works with flanged castor wheels only.
