Operating rods
TLA-LSH-ROD · 3 options
Long-reach rods for releasing semi-automatic twistlocks from deck level — three lengths covering tiers one through four, so a lashing gang works the whole stack from the ground.
No prices online — quotations are prepared per application and quantity, usually within one business day; a more involved enquiry may take a little longer.
Specifications
| ISO code | BD-J1/OT |
|---|---|
| Tier 1/2 | 1 800 mm · 1.13 kg · SKU TLA-LSH-ROD-18 |
| Tier 2/3 | 4 700 mm · 2.30 kg · SKU TLA-LSH-ROD-47 |
| Tier 3/4 | 7 300 mm · 3.80 kg · SKU TLA-LSH-ROD-73 |
Load ratings are as published in the TLA 2026 catalogue. Site-specific ratings and certification: on request.
Features
- Three lengths cover tiers one through four from deck level
- Releases semi-automatic twistlocks without working at height
- Each length carries its own SKU
- Pairs with the semi-automatic twistlock range in Section 1
Typical applications
Releasing semi-automatic twistlocks on vessel and yard stacks from deck level; container terminal lashing operations.
Description

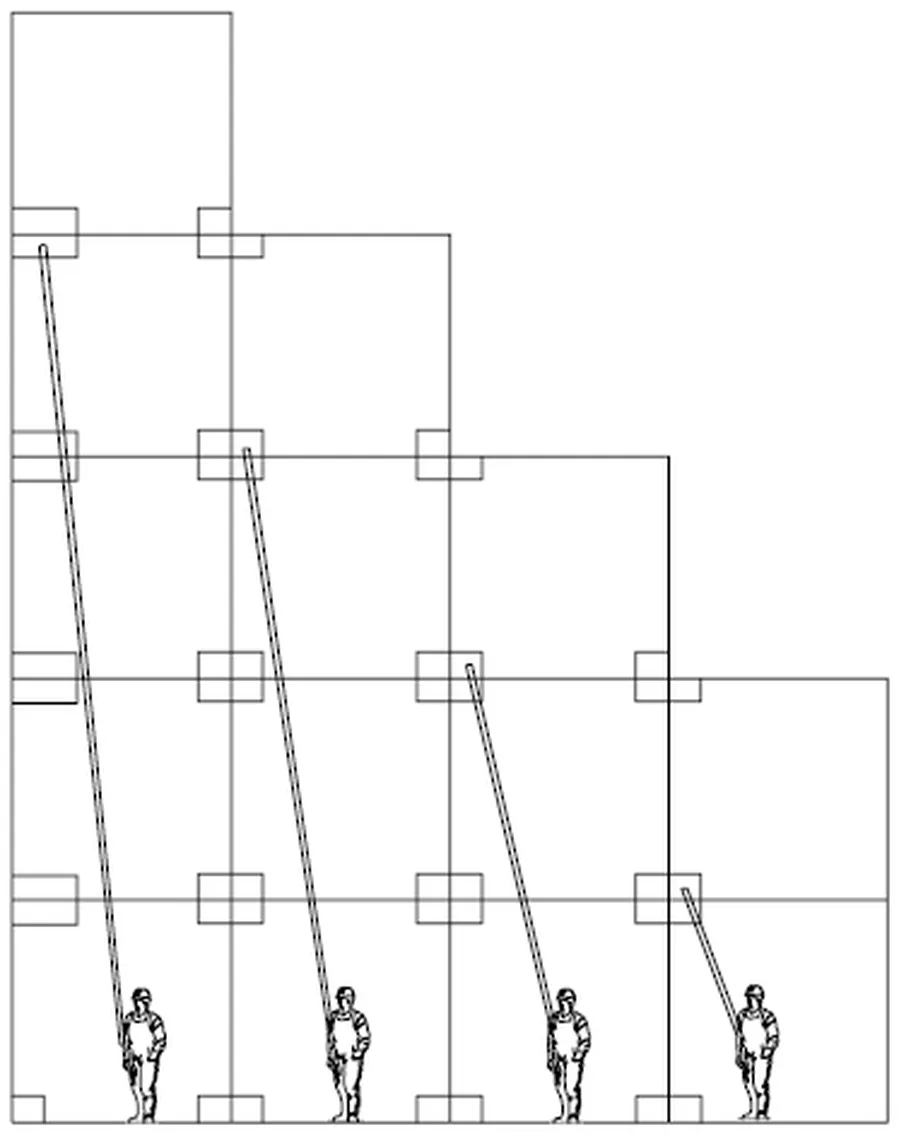

A semi-automatic twistlock has to be released from below once the container above it is to be lifted. The operating rod does that from deck level: hook the rod onto the twistlock toggle and pull. Three lengths cover the practical stack — 1 800 mm for tier one to two, 4 700 mm for tier two to three, and 7 300 mm for tier three to four — keeping the lashing gang off ladders and out of the stack.
Downloads & CAD
⬇ Request the datasheet (PDF) — WhatsApp
◇ Technical drawing — available on request via the quote basket.
Operating rods — 3 options
Add the exact option you need — each goes on the quotation as its own line.
| Option | SKU | Mass | |
|---|---|---|---|
| Tier 1/2 · 1 800 mm | TLA-LSH-ROD-18 | 1.13 kg | |
| Tier 2/3 · 4 700 mm | TLA-LSH-ROD-47 | 2.3 kg | |
| Tier 3/4 · 7 300 mm | TLA-LSH-ROD-73 | 3.8 kg |
