Operation 09 · Lashing
Extension bars & hook
TLA-LSH-EXTK-01 / -EXTE-01 / -EXTH-01
Short bars that add reach to a lashing assembly — knob type and eye-to-plug, both 250 kN, used where the standard bar does not make the lashing point.
No prices online — quotations are prepared per application and quantity, usually within one business day; a more involved enquiry may take a little longer.
Specifications
| Knob type | BB-D1 · 250 kN · 4.0 kg · SKU TLA-LSH-EXTK-01 |
|---|---|
| Eye to plug | BB-E1 · 250 kN · 3.9 kg · SKU TLA-LSH-EXTE-01 |
| Load Rating (SWL) | 250 kN tension |

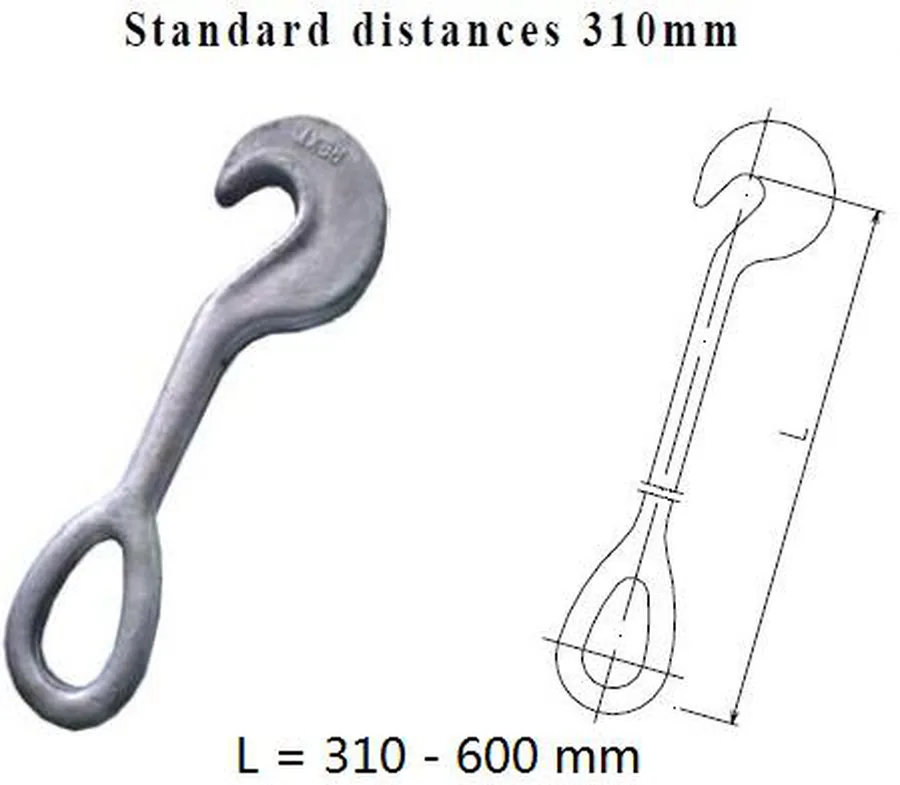

| Extension hook | 310 mm standard · made up to 600 mm · forged · SKU TLA-LSH-EXTH-01 |
| Standard | ISO 3874 · IMO CSS Code |
Load ratings are as published in the TLA 2026 catalogue. Site-specific ratings and certification: on request.
Features
- Adds reach where a standard lashing bar falls short
- Two bar end types to match the bar and turnbuckle in use
- Rated to the same 250 kN as the bars they extend
- Extension hook adds a single fixed step of reach — 310 mm standard, made up to 600 mm on request
- Hook is forged, not cast: eye and hook are one continuous piece
- Light enough to handle one-up at height
Typical applications
Extending lashing assemblies to reach deck lashing points on wider hatch spacings; awkward stowage geometry.
Description
Deck lashing points are not always where the bar length assumes. The extension bar closes that gap: it inserts between the lashing bar and the turnbuckle, adding reach without dropping the rating — both types are rated to the same 250 kN as the bars they extend. Knob and eye-to-plug ends are stocked so the assembly stays matched end to end. Where the shortfall is fixed rather than variable, the extension hook adds one step of reach at the deck end without a second threaded joint: 310 mm between centres as standard, made up to 600 mm on request, and forged in one piece rather than cast.
Downloads & CAD
⬇ Request the datasheet (PDF) — WhatsApp
◇ Technical drawing — available on request via the quote basket.
