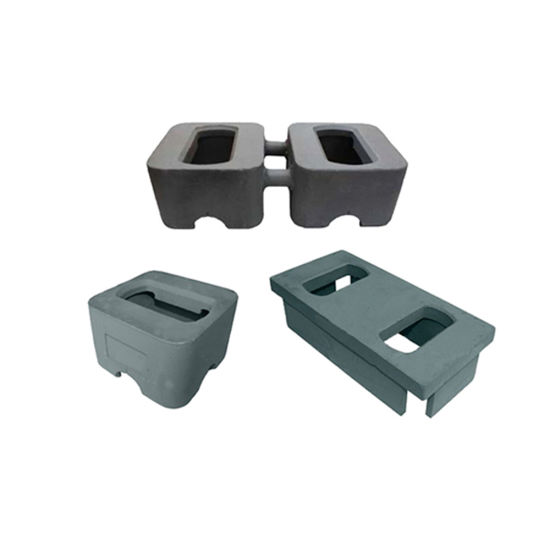

Foundation raised sockets are welded onto a ship’s deck to provide secure locking points for ISO shipping containers. The containers are fastened to the raised sockets using manual twistlocks, semi-automatic twistlocks, Turnfoot D-rings, and other compatible twistlocks.
The raised socket units are available in several configurations:
-
Single Raised Foundation 110mm
-
Single Raised Foundation 140mm
-
Double Raised Foundation 110mm
-
Double Raised Foundation 140mm
Additional configurations with varying ISO hole sizes are available. Please contact us for further details.
Foundation Raised Sockets Features
-
Manufactured using Blank Steel
-
Finish: Primed
-
Weight: 12.6kg
-
Breaking Load (BL): Shear 420 kN, Tension 500 kN
-
Safe Working Load (SWL): Shear 210 kN, Tension 250 kN
