Our shipping container bridge clamp is designed to allow a container on top or next two another container to be locked into place so it is safe and secure. These bridge clamps are not designed or tested for other uses and we cannot guarantee their safety for use for any other purpose. Do not move any container while they are locked together. Remove the bridge clamps and move containers one at a time.
How to Install a Bridge Clamp:

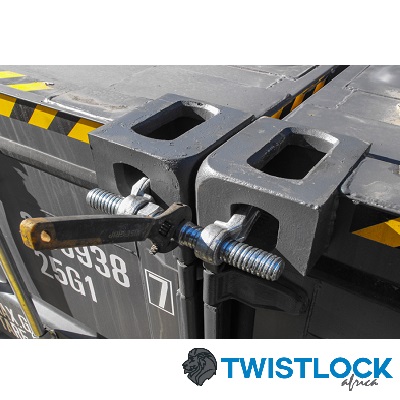

Open the Bridge Clamp by twisting shaft until a minimum distance between grips of approx 200mm is achieved. Insert the clamp across adjacent corner castings as shown, ensuring grip hooks are inside corner casting. Rotate the shaft to tighten grips using central spanner point. Tighten the lock nut up to adjacent grip to ensure the clamp is not easy to loosen.
Features
- Finish: Hot dipped galvanized
- Forged Steel
- Weight: 3.3kg
- B.L tension: 100kN
- W.L tension: 50kN
- B.L shear: 100kN
- S.W.L shear: 50kN
