The Standard Trailer Lock – Long Handle is an industry-standard twistlock used by the trucking industry to allow flatbed trailers to accommodate ISO shipping containers.
To allow maximum versatility, a triple axle trailer should have a minimum of 6 to carry either a fully loaded or empty 6 meter or 12 meter container. The addition of 2 twistlocks will allow the same trailer to carry 2 x 6m empty containers. It should be noted that 4 of the trailer locks can be replaced by 2 double trailer locks.
In the event of the core being damaged, it can be replaced easily with the removal of the galvanised bolt and nut.
These Standard Trailer Lock – Long Handle units are normally welded through the deck of the trailer. They have the advantage of being retractable when not in use. When in the up position, the unit acts as a guide for the container for when it is being loaded. Once the container has landed, the handle is turned for the upper section to turn and lock the container into position
Although not very common, this unit is available in a short handle variation.
The material of construction does allow for the easy replacement of the handle, should the need arise.

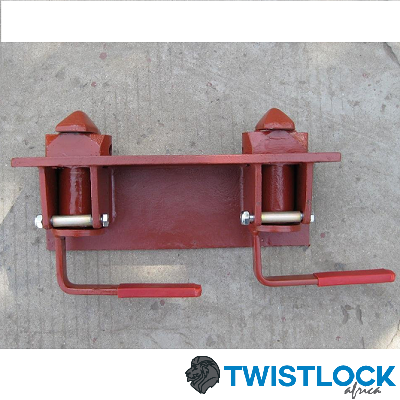

These Standard Trailer locks are available in both single and double configurations. Double configuration pricing on request only.
Features
• Materials of construction
o Body: Cast steel
o Frame: Steel plate
• Weight: 10.8 kg ± 0.5, depending on the fabricator/ supplier
• Colour: normally red, also available in Grey or black
• SWL Tension: 250kN
• SWL Shear: 210kN
• MBL Tension: 500kN
• MBL Shear: 420kN
• These standard Trailer locks are available in both single and double configurations. Double configuration pricing on request only.
